About the Project

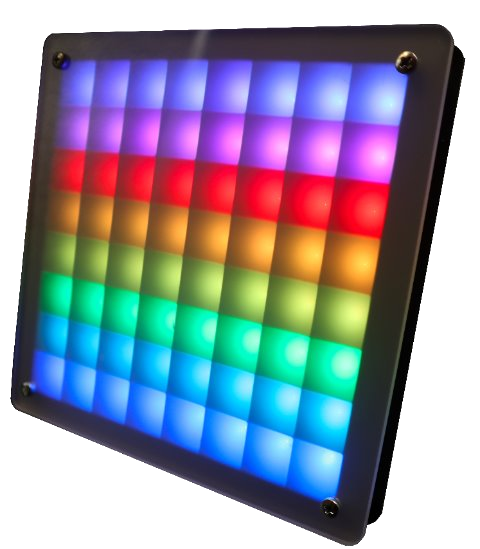

The Luma Matrix is a Workshop by ZHAW to play and create with coding. The center of the workshop is an 8 by 8 pixel matrix controlled with a micro:bit. Use the blocks from the extension to build whatever you have in mind. Draw images, show text, display the time, or even connect it to other Luma Matrices.

Use as an Extension

This repository can be added as an extension in MakeCode.

Open https://makecode.microbit.org/
Click on New Project
Click on Extensions under the gear menu
Search for https://github.com/ines-hpmm/pxt-luma-matrix and import

Initialize Matrix

The matrix must be initialized at the beginning of every program. There is a block for this:

lumaMatrix.initializeMatrix(135)

Example

The available blocks can display images and text, as well as control individual pixels.

lumaMatrix.initializeMatrix(135)
lumaMatrix.scrollText("LUMA MATRIX", 0xff00FF, 90)
lumaMatrix.showImage(lumaMatrix.matrix8x8(`
    . . . . . . . .
    . # # . . # # .
    . # # . . # # .
    . . . . . . . .
    # . . . . . . #
    . # . . . . # .
    . . # # # # . .
    . . . . . . . .
    `), 0xffff00)

Communication

radio.setGroup(25)
lumaMatrix.initializeMatrix(135)
lumaMatrix.scrollText("LUMA MATRIX", 0xff00FF, 90)
lumaMatrix.showImage(lumaMatrix.matrix8x8(`
    . . . . . . . .
    . # # . . # # .
    . # # . . # # .
    . . . . . . . .
    # . . . . . . #
    . # . . . . # .
    . . # # # # . .
    . . . . . . . .
    `), 0xffff00)

loops.everyInterval(5000, function() {
    lumaMatrix.sendImageWithColor(lumaMatrix.matrix8x8(`
    . . . . . . . .
    . # # . . # # .
    . # # . . # # .
    . . . . . . . .
    # . . . . . . #
    . # . . . . # .
    . . # # # # . .
    . . . . . . . .
    `), 0xffff00)
    basic.pause(300)
    lumaMatrix.sendImageWithColor(lumaMatrix.matrix8x8(`
    . . . . . . . .
    . # # . . # # .
    . # # . . # # .
    . . . . . . . .
    . . . . . . . .
    . # # # # # # .
    . . . . . . . .
    . . . . . . . .
    `), 0xffff00)
})

lumaMatrix.onReceivedMatrix(function(dataType: number, receivedBuffer: Buffer) {
    if (dataType == lumaMatrix.getDataType(lumaMatrix.eDataType.Bitmap)) {
        lumaMatrix.showImage(lumaMatrix.parseImage(receivedBuffer), lumaMatrix.parseBufferForColor(receivedBuffer))
    }
})

Edit This Project

To edit this repository in MakeCode:

open https://makecode.microbit.org/
Click on Import and then Import URL
Enter https://github.com/ines-hpmm/pxt-luma-matrix and click Import

Update Translation

The block translations are stored in the _locales/de folder. To update the translation, the relevant files can be modified in MakeCode. For major changes or newly added blocks, the MakeCode localization guide can be used.

# NodeJS and npm must be installed
npm install -g pxt
pxt target microbit
pxt install
pxt gendocs --locs
